In large-scale civil engineering and underground infrastructure developments, standard off-the-shelf heavy machinery attachments often fall short of meeting complex project requirements. When operating within confined subterranean environments—such as utility pipelines, metro expansions, or deep drainage networks—standard straight-edged loader and bobcat buckets create massive operational inefficiencies.

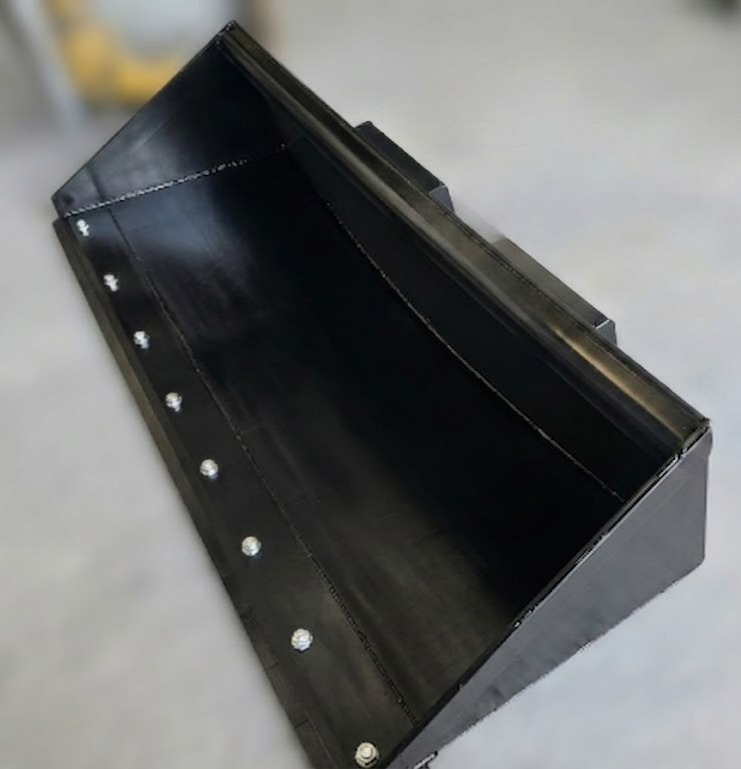

Recently, PROFEN Fabrication Works LLC was commissioned to design, engineer, and fabricate a one-off custom curved loader bucket specifically modified to match the precise internal radius of an active tunnelling project in the UAE.
This technical case study breaks down how our heavy engineering team optimized material clearing efficiency, minimized structural tunnel wall damage, and delivered a high-durability mechanical asset within a tight project timeline.
The Engineering Challenge: Overcoming Straight-Edge Limitations
During mechanical excavation and mucking operations inside a circular tunnel, standard straight-edged buckets create two major bottlenecks:
- Spillage and Efficiency Loss: A flat bucket edge cannot sit flush against a curved tunnel invert (the floor). This leaves significant amounts of debris behind on every scoop, requiring manual labor to clean or forcing operators to take multiple repetitive passes.
- Structural Integrity Risks: Attempting to scrape close to the edges with a standard square-bucket corner poses a severe risk of gouging or compromising the structural precast concrete tunnel segments or shotcrete linings.
Our client required a heavy-duty attachment that precisely mirrored the geometric arc of the tunnel floor, maximizing the structural volume per scoop while ensuring complete operational safety next to concrete walls.
The PROFEN Solution: Precision Geometric Radial Fabrication
Operating from our advanced fabrication facility in Dubai, PROFEN’s engineering team executed a comprehensive design-to-delivery workflow:
1. Advanced Structural Design & Rolling Calculations
Using precise client dimensions of the tunnel’s interior profile, our design team calculated the exact structural radius required for the bucket’s cutting edge and moldboard. Using high-tonnage hydraulic plate rolling machinery, heavy-gauge structural steel plates were rolled to flawless, mathematically precise curves to ensure an identical match to the tunnel invert.
2. High-Strength Steel Material Selection
Tunnelling and mucking environments subject attachments to intense impact and abrasive wear. To guarantee an extended service lifespan, the structural shell was fabricated from heavy-gauge carbon steel, while the primary scraping lip was reinforced using ultra-hard, wear-resistant alloy steel plates.
3. Certified Welding & Heavy Assembly
Because loader attachments endure immense cyclic hydraulic pressures, our certified welders utilized high-penetration MIG (GMAW) welding sequences. Every critical joint underwent rigid in-house fit-up inspections to prevent structural warping during the high-heat welding process, maintaining the strict tolerance of the calculated radius.
4. Specialized Hardfacing for Abrasive Environments
To protect the bucket against constant friction from crushed rock, gravel, and sand slurry, PROFEN applied industrial hardface welding along the high-wear heel paths and side cutters. This overlay adds a robust, protective checkered barrier that significantly delays metal erosion.
The Result: Enhanced Project Workload Efficiency
By replacing standard attachments with PROFEN’s custom radius loader bucket, the project site achieved immediate operational improvements:
- Maximized Cycle Times: The curved bucket configuration cleared up to 40% more material per single scoop along the tunnel floor compared to standard attachments.
- Zero Structural Wall Damage: The matching radius allowed operators to work safely near the lining, eliminating micro-cracks or structural concrete gouges.
- Reduced Manual Labor: Eliminating the debris left behind by flat buckets minimized the need for secondary manual sweeping crews, lowering overall project overhead.
Leverage PROFEN’s Heavy Equipment Fabrication Expertise
This custom tunnelling attachment highlights PROFEN’s capacity to look beyond standard blueprints and engineer bespoke solutions for complex machinery challenges. Whether your project requires specialized earthmoving attachments, heavy structural modifications, or certified code-compliant weldments, our engineering facility delivers reliability on schedule.
Have a Unique Equipment Modification Challenge on Your Site? Partner with the UAE’s trusted industrial fabrication experts. Let us transform your specific layout issues into high-efficiency mechanical solutions.
