Installing heavy material handling systems within existing, fully operational industrial facilities frequently presents a core engineering challenge: extreme space constraints.
When PROFEN Fabrication Works LLC was tasked with installing a Monorail Lifting Beam complete with a chain block and geared trolley system, the primary obstacle was not simply the structural load—it was the highly congested, low-clearance site environment with rough gravel terrain.
Through custom logistical rigging, specialized temporary access setups, and precise structural alignment, our engineering team successfully executed the project with zero operational downtime and 100% compliance with international safety standards.
Project Specifications Overview
| Parameter | Technical Detail |
| Equipment Type | Overhead Monorail Lifting Beam |
| Safe Working Load (SWL) | 0.5 Ton (500 kg) |
| System Components | Geared Trolley & Manual Chain Block (0.5T) |
| Site Constraints | Congested pipe racks, low overhead clearance, uneven gravel ground |
| Quality & Compliance | Proof-Load Tested, Certified & Stenciled |
1. Logistics & Material Movement on Rough, Narrow Ground
Standard forklift access and heavy hydraulic cranes were completely ruled out due to tight structural clearances and an unpaved gravel surface surrounding the installation point.
- Engineering Solution: PROFEN designed and fabricated custom heavy-duty transport carts fitted with high-flotation, wide-tread wheels. This allowed our field crew to manually glide the multi-meter steel beam through narrow access pathways and over unpaved gravel without risking structural damage or manual handling hazards.
2. Overcoming Low Clearance with Custom Temporary Access
The beam had to be mounted directly under existing structural frames surrounded by live process piping, cable trays, and electrical enclosures. Standard modular scaffolding could not fit within the footprint.
- Engineering Solution: Our site team constructed customized, low-profile temporary work platforms and tailored rigging frames. This provided a stable, OSHA-compliant working elevation for technicians while keeping the workspace compact enough to navigate around delicate plant infrastructure.

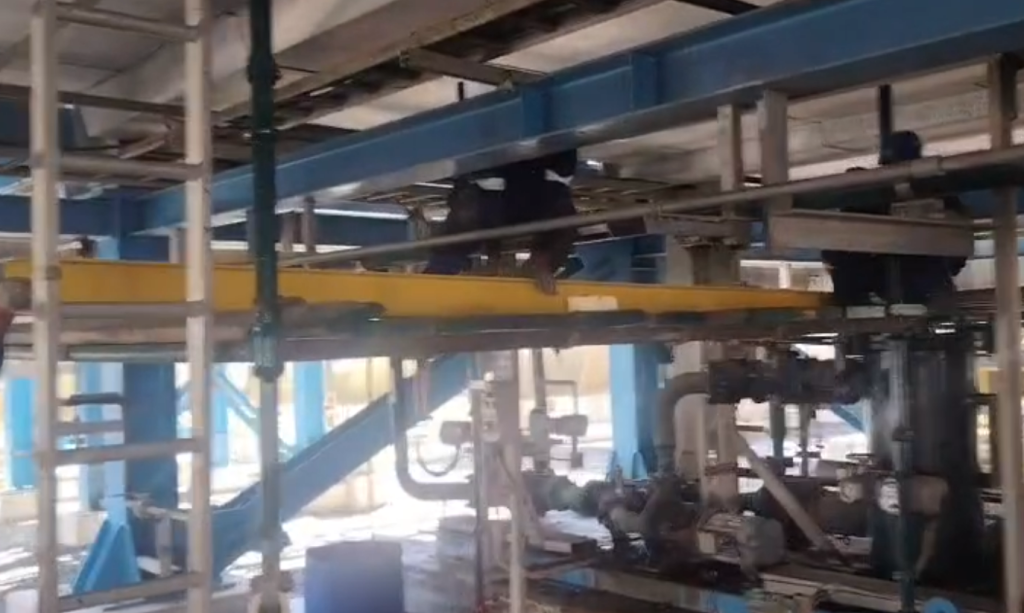

3. Precision Positioning & Erection
Rigging in confined spaces leaves zero tolerance for misalignment. Lifting the beam into position required coordinated manual and mechanical hoisting.
- Engineering Solution: Utilizing low-headroom chain hoists and precise manual positioning techniques, the beam was carefully elevated into place. Technicians verified alignment and level tolerances before securely bolting and welding the beam to the existing steel superstructure.
4. Integration of Trolley, Chain Block & Quality Assurance
Once the monorail beam was locked into position:
- A 1-Ton Geared Trolley and 0.5T Lifteasy Chain Block were mounted onto the beam flange.

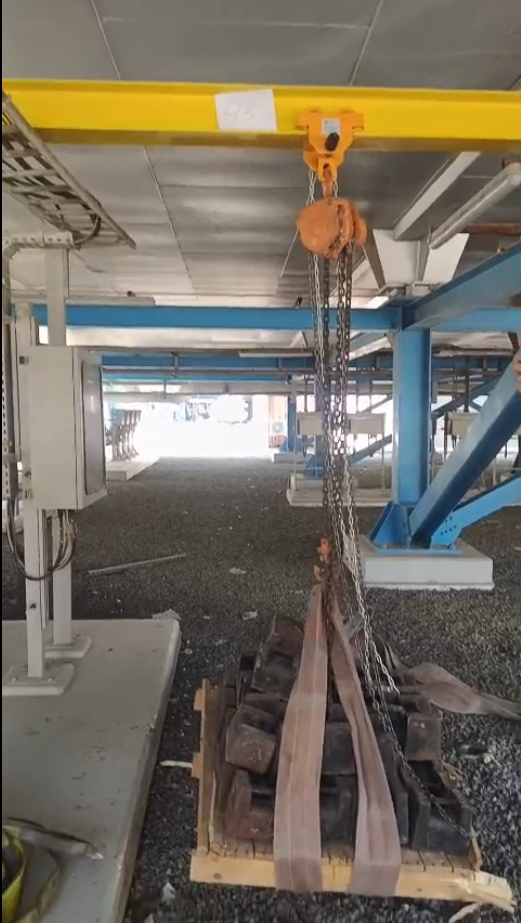

- The entire assembly underwent rigorous proof-load testing on-site to verify structural integrity under dynamic and static loads.

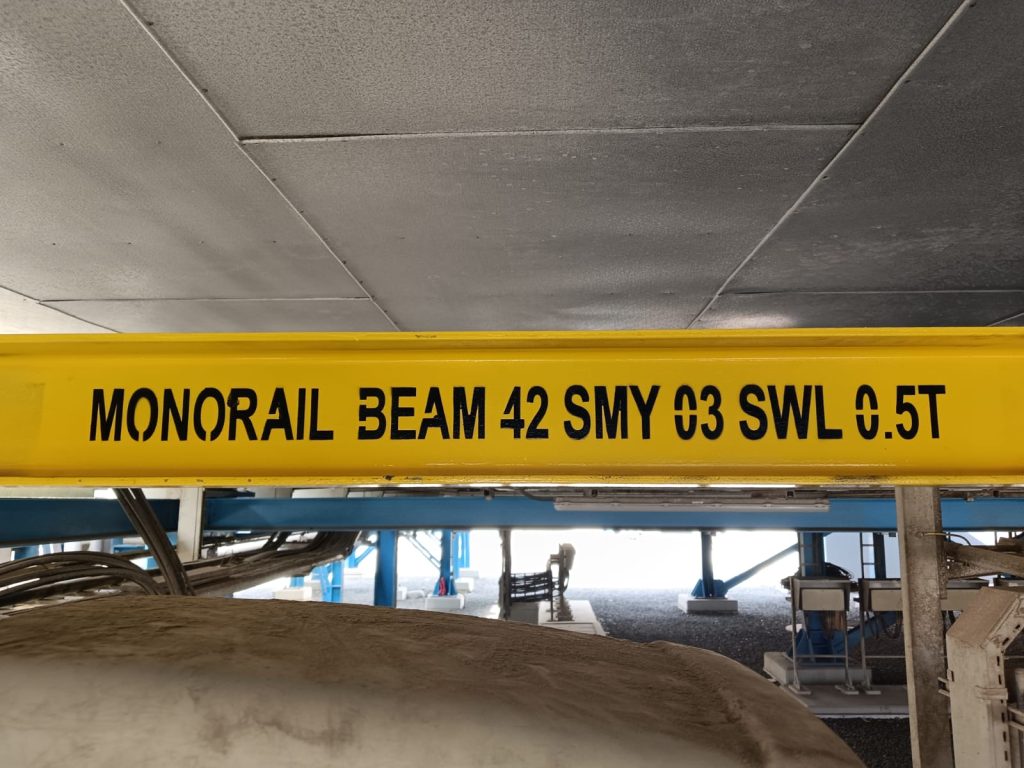

- Final stenciling of SWL 0.5T, monorail designation, and serial tracking numbers was applied for seamless facility maintenance.
The Result
The project was delivered on schedule with zero site safety incidents. PROFEN provided the client with a fully certified, turn-key lifting solution tailored precisely to their tight spatial geometry.
Need a custom material handling or lifting solution in a challenging environment?
PROFEN Fabrication Works LLC specializes in structural steel fabrication, custom material handling equipment, and complex site erection across the UAE.
Frequently Asked Questions (FAQ)
Q: Can lifting beams be installed in areas with active piping and low headroom?
A: Yes. By designing custom rigging fixtures, low-profile hoisting gear, and site-specific temporary platforms, monorail lifting beams can be safely retrofitted into high-density industrial plants without disrupting surrounding infrastructure.
Q: What load testing is required for new monorail lifting beams?
A: Installed monorail beams must undergo proof-load testing (typically exceeding the SWL rating per BS/EN/OSHA standards) using certified test weights prior to final commissioning and stenciling.
